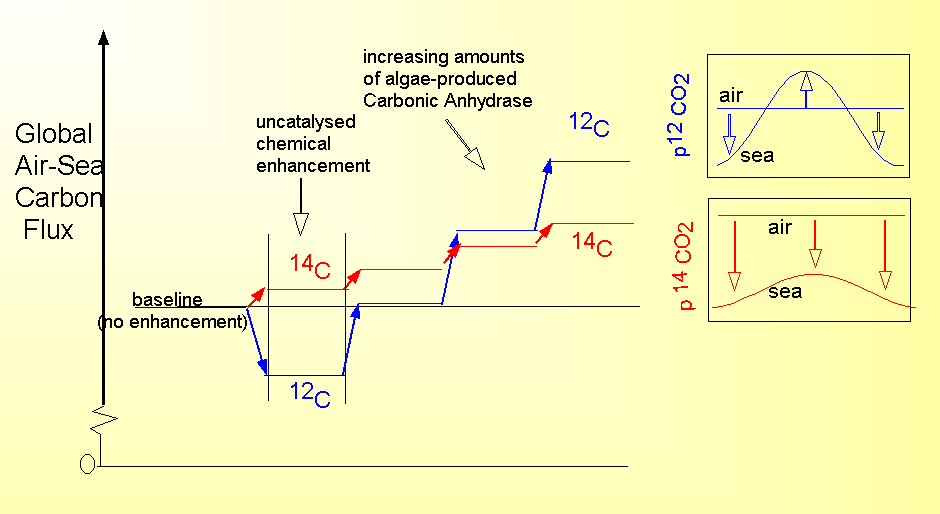

Figure 3-6: The effect on the 14C flux is different from that on the 12C flux!
(Note: the boxes (right) illustrate that the 14C flux is mostly one-way whereas the 12C flux is the difference of regional fluxes -the x-axis of each box could be considered to represent latitude).
